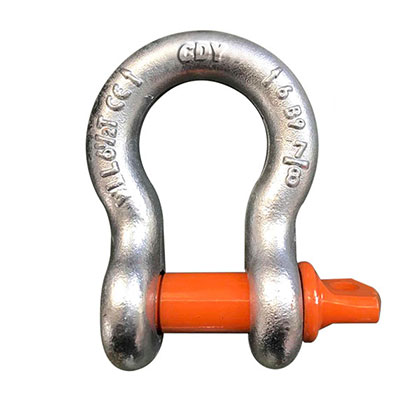

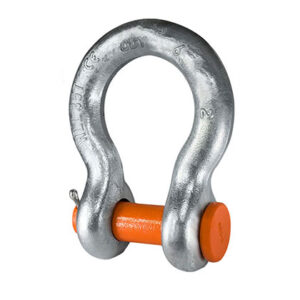

U.S. ANCHOR SHACKLES Screw pin anchor shackles

• G-209 Screw pin anchor shackles
• Meets the performance requirements of Federal Specification RR- C-271F Type IVA, Grade A, Class 2
• Maximum Proof Load is 2.2 times the Working Load Limit, with a minimum break force 6 times the working load limit.
• Capacities 1/3 thru 55 metric tons.
• Forged - Quenched and Tempered, with alloy pins.
• Working Load Limit and grade “6” permanently shown on every shackle.
• Hot Dip galvanized or self colored.
• Fatigue rated.
• Shackles can be furnished proof tested with certificates to designated standards
• Charges for proof testing and certification available when requested at the time of order.
• Shackles can meet impact requirements of 42 joules(31 ft-lbs) avg. at -20 degrees C (-4 degrees F).

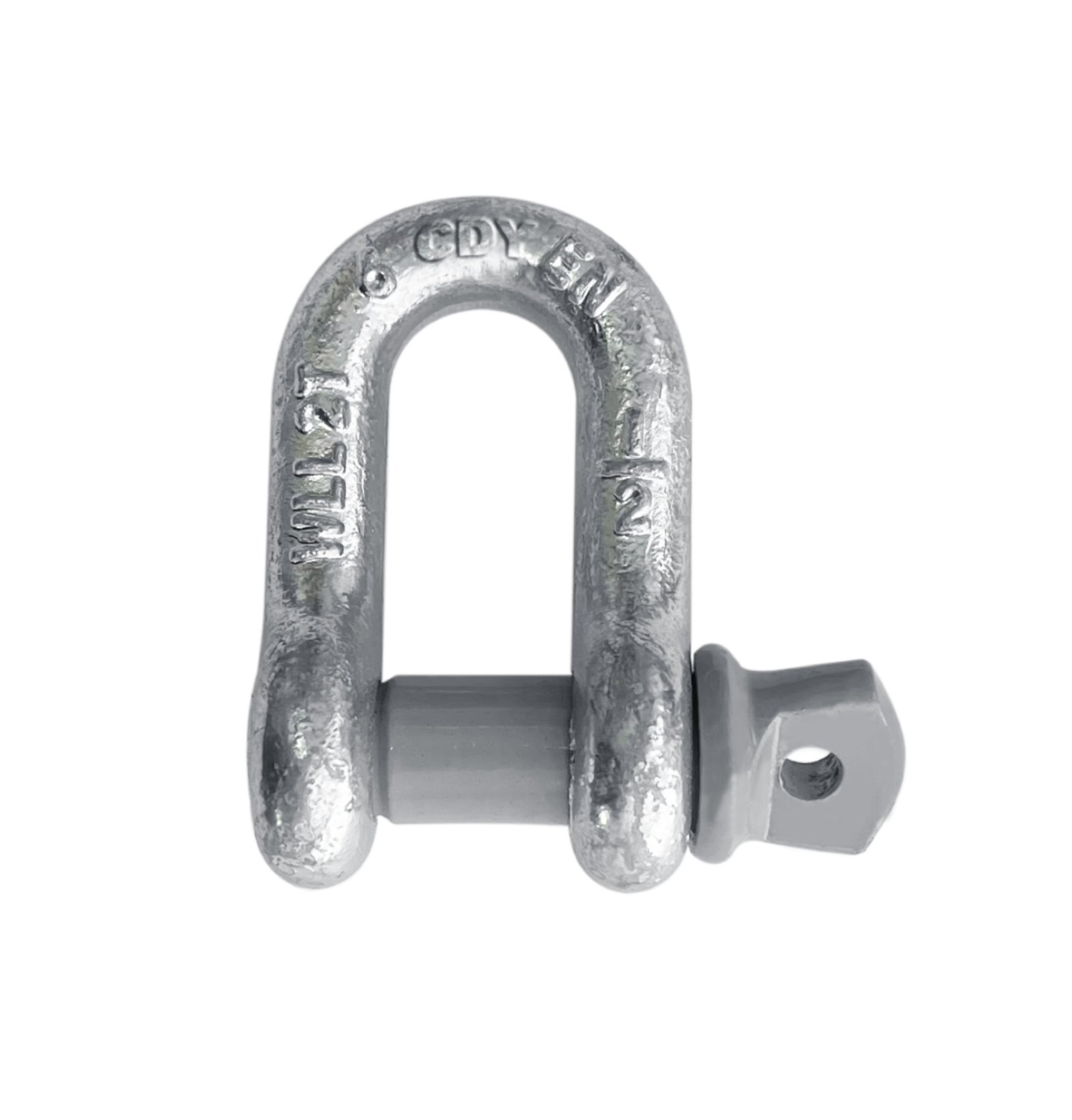

DEE SHACKLES WITH SCREW PIN

• G-4151 dee shackles with screw pin
• Meets EN13889-2009 and the performance requirements of Federal Specification Type IVB, Grade A, Class 2
• Maximum Proof Load is 2.2 times the Working Load Limit, with a minimum break force 6 times the working load limit.
• Temperature Range: -40℃ up to +200℃
• Forged - Quenched and Tempered, with alloy pins.
• Working Load Limit and grade “6” permanently shown on every shackle.
• Hot Dip galvanized or self colored.
• Fatigue rated.
• Shackles can be furnished proof tested with certificates to designated standards Charges for proof testing and certification available when requested at the time of order.
• Shackles can meet impact requirements of 42 joules(31 ft-lbs) avg. at -20 degrees C (-4 degrees F).

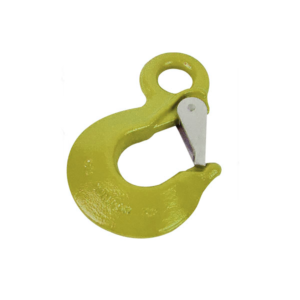

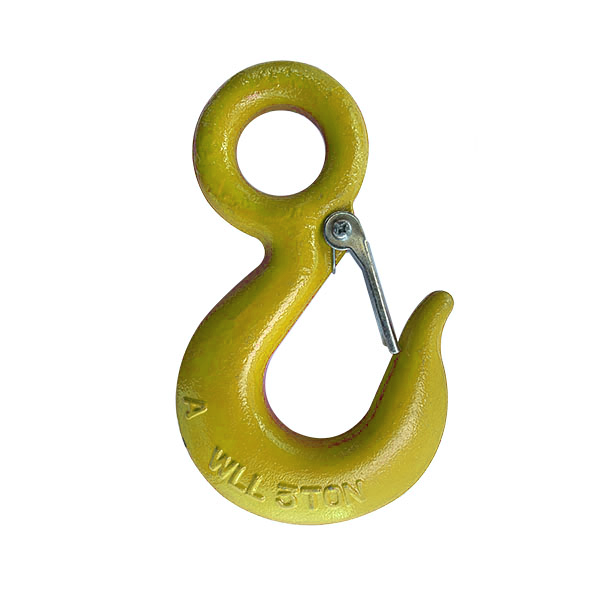

EYE HOOK WITH LATCHES

Eye Hook 320A /320C Available in carbon steel and alloy steel. Ultimate Load is 2 times the working load limit. Quenched and Tempered. Hot Dip galvanized or powder coated or self colored. Test and mill Certificates are available upon request.

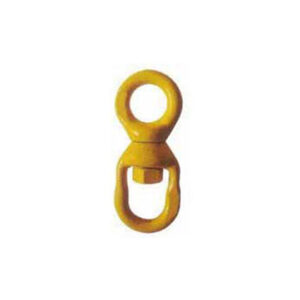

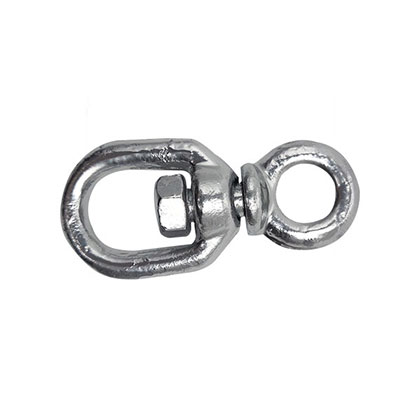

CHAIN SWIVELS

• Chain Swivels 401G Meets the performance requirements of Federal Specification RR-C-271F, Type VII, Class 1
• Forged - Quenched and Tempered.
• Ultimate Load is 5 times the Working Load Limit.
• Hot Dip galvanized or self colored.
• Fatigue rated.
• Test and mill Certificates are available upon request.

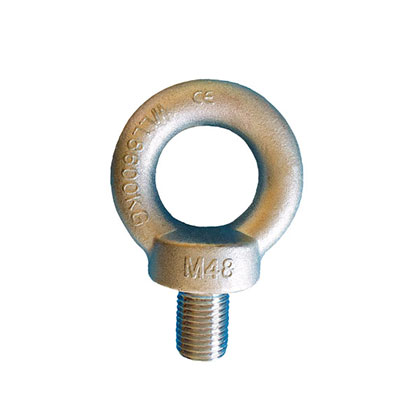

EYE BOLT

• DIN580 Eye Nut
• Carbon Steel
• Quenched and Tempered.
• Electronic Galvanized or self colored.
• Test and mill Certificates are available upon request.

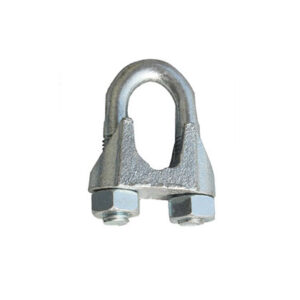

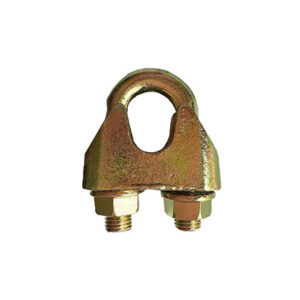

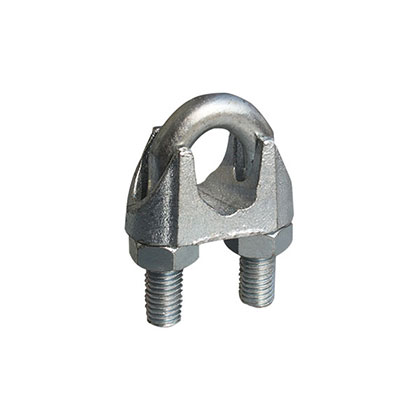

GALVANIZED MALLEABLE WIRE ROPE CLIPS TYPE A

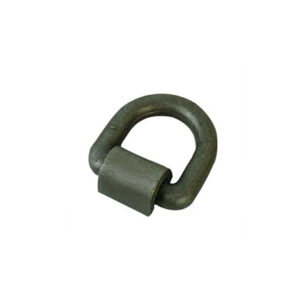

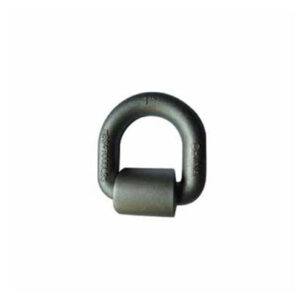

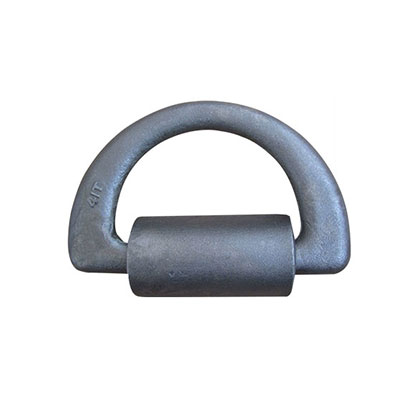

D RING

• D-Ring
• Quenched and Tempered.
• Hot Dip galvanized or self colored.
• Test and mill Certificates are available upon request.
• Ultimate Load is 4 times the working load limit.

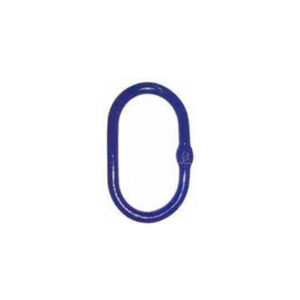

MASTER LINK ASSEMBLY(FORGED MAIN LINK)

• Master Link Assembly (Forged Main Link) 345A
• Ultimate Load is 4 times the working load limit.
• Quenched and Tempered.
• Hot Dip galvanized or powder coated or self colored.
• Test and mill Certificates are available upon request.
• Ultimate Load is 4 times the working load limit.

U.S. EYE& HOOK TURNBUCKLE

• Material: Carbon steel 1045#
• Finishing: Electronic Galvanized or HDG
• Drop Forged in carbon steel
• Packing: Carton packing then palletized with metal pallet

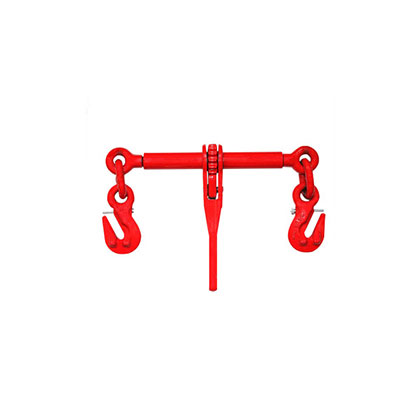

Ratchet Load Binder

• Ratchet Load Binder 80G
• Alloy steel
• A minimum break force of 3.5x Lashing Capacity.
• Forged - Quenched and Tempered.
• Powder Coated or Electronic Galvanized.
• Test and mill Certificates are available upon request.
